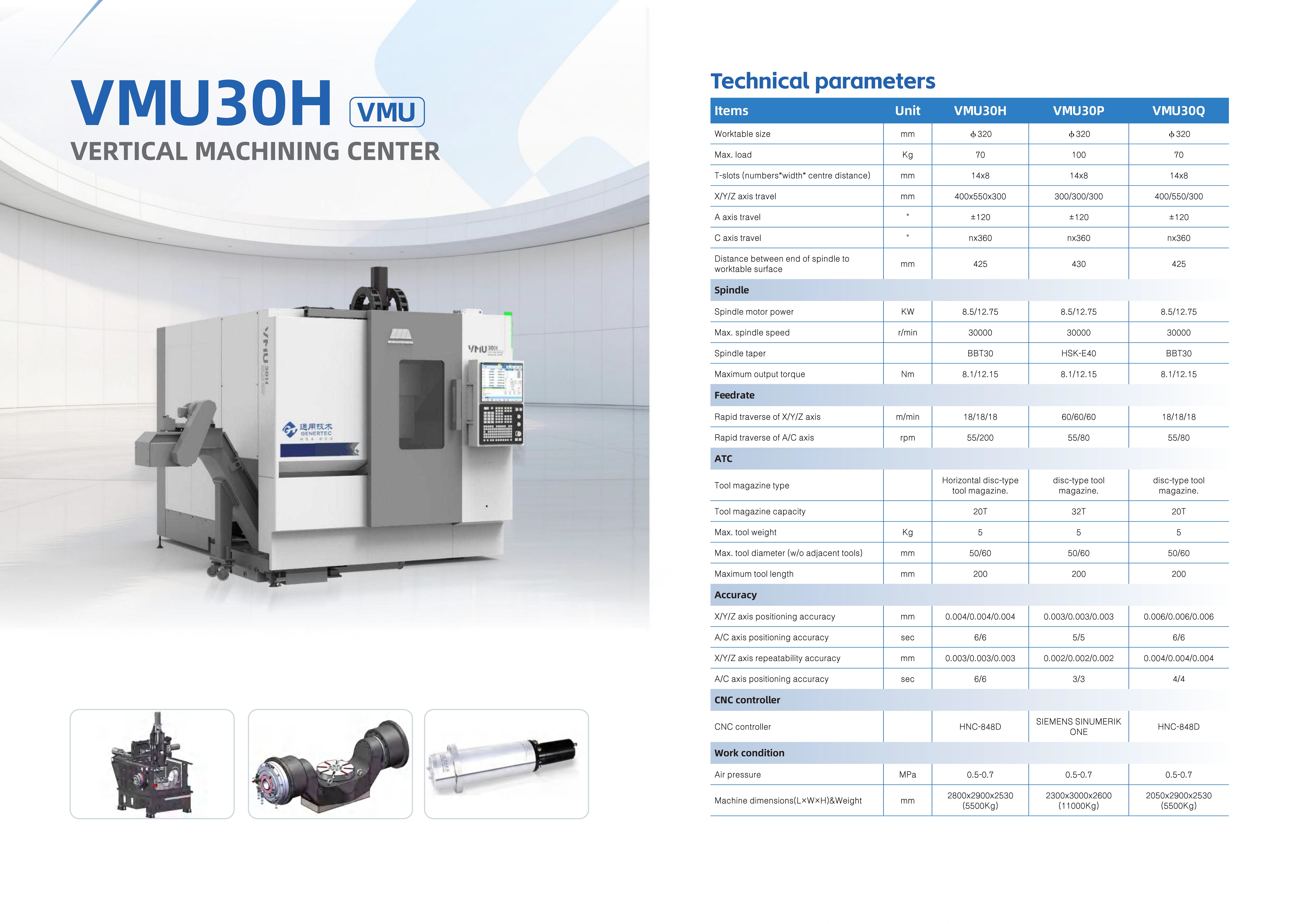

VMU30H/P/Q Series Vertical 5‑Axis Machining Center

VMU30H Vertical 5‑Axis Machining Center Developed for 3C, medical and mold‑making industries. Adopting overhead‑gantry structure with integrally cast bed‑column for superior rigidity and precision retention. Fitted with 30000 rpm high‑speed motor spindle and torque‑motor direct‑drive dual‑swivel table. Linear axes with 1 G acceleration, rotary axes up to 80 r/min deliver exceptional dynamic performance. Linear‑axis positioning accuracy ≤0.006 mm, rotary‑axis angular positioning accuracy ≤8 arcsec. High rigidity, high speed, high precision, rich options and powerful 5‑axis simultaneous‑interpolation enable efficient machining for complex special‑shaped components.
