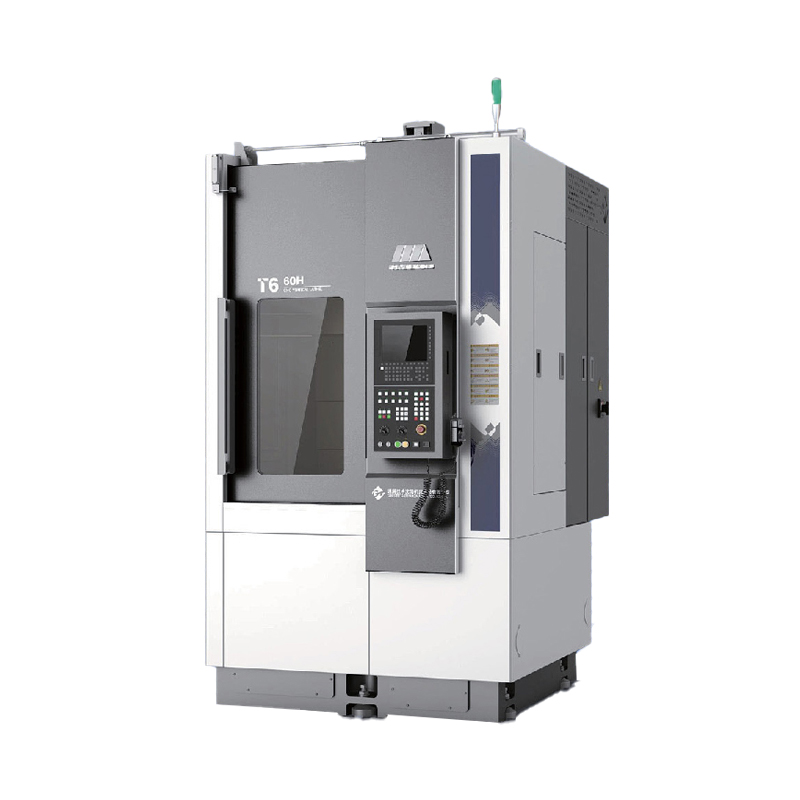

T6 Series CNC Vertical Lathe

T6-Q/H Series CNC Vertical Lathe

The T6‑50Q/T6‑60Q/T6‑85Q/T6‑50H/T6‑60H/T6‑85H CNC vertical lathes are suitable for machining various disc‑type and short‑shaft‑type parts. Typical turning features include end faces and end‑face grooves, external and internal threads, grooves, rotary curved surfaces and other geometric features.

This series of lathes can achieve machining accuracy of IT6~IT7 for workpiece dimensions, and a maximum surface roughness of Ra1.6 under optimal cutting conditions.

These lathes meet the requirements for high‑efficiency, high‑volume and high‑precision machining of rotary‑body parts in industries including automobile, motorcycle, bearing, electronics, aerospace, military industry and non‑ferrous metal processing.

在线咨询全国热线
86-024-25340888

The T6‑50Q/T6‑60Q/T6‑85Q series CNC vertical lathes feature high cost‑performance, easy operation, high rigidity and stability. Equipped with high‑quality domestic functional components, they occupy a small floor space while offering a large machining range, and are widely used for machining in automotive, general‑purpose industries, construction machinery and other sectors.

The T6‑50H/T6‑60H/T6‑85H series CNC vertical lathes are third‑generation new‑type CNC vertical lathes with fully upgraded technical structures. They deliver excellent rigidity, stability and machining accuracy. Fitted with premium imported functional components, they are widely applied in new‑energy, automotive, bearing and other industries, bringing customers an outstanding operating experience.


Inquiry Hotline:

National Free Hotline for Quotation of T6-50Q/T6-60Q/T6-85Q/T6-50H/T6-60H/T6-85H Series CNC Vertical Lathe: 400-6576-123

Tel: +86-24-25340888,25341888,+86-13897938327

Maintenance & Refitting Service:

Contact for repair and retrofit services of T6-50Q/T6-60Q/T6-85Q/T6-50H/T6-60H/T6-85H Series CNC Vertical Lathe

Tel: +86-24-25340767,+86-13898186357

Parts Supply Service:

Contact for spare parts supply of T6-50Q/T6-60Q/T6-85Q/T6-50H/T6-60H/T6-85H Series CNC Vertical Lathe

Tel:+86-24-25341717,024-25341716,+86-13504032832
