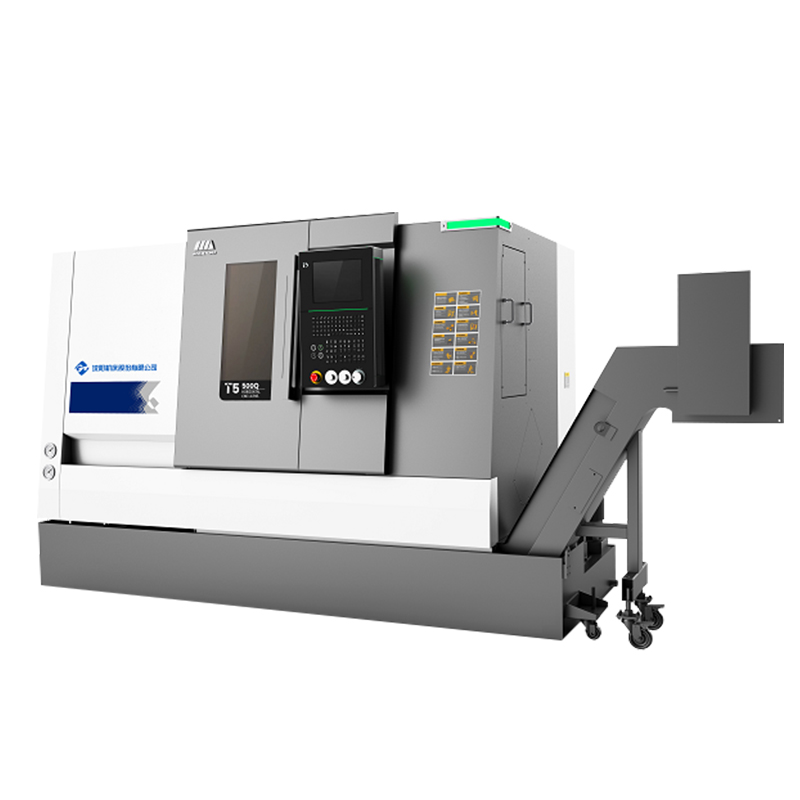

T5.2-500Qy Dual‑Spindle Turn‑Mill Center

The T5.2‑500Qy dual‑spindle turn‑mill center is a multi‑axis controlled turn‑mill center equipped with opposed built‑in electric spindles and a horizontal 12‑station powered turret with Y‑axis function. In addition to the functions of a CNC lathe, it also provides milling capabilities.This machine tool can machine rotary‑type parts with complex geometries and high‑precision requirements, including internal and external cylindrical surfaces, conical surfaces, stepped surfaces, spherical surfaces and various other rotary curved surfaces, internal and external grooves, as well as metric and imperial internal‑external threads.

Powered tools enable milling of axial and radial straight grooves and helical grooves, face milling, drilling, reaming, tapping and other operations. It is suitable for small‑to‑medium‑batch and single‑piece production, and can also be applied to high‑volume production of complex parts.
