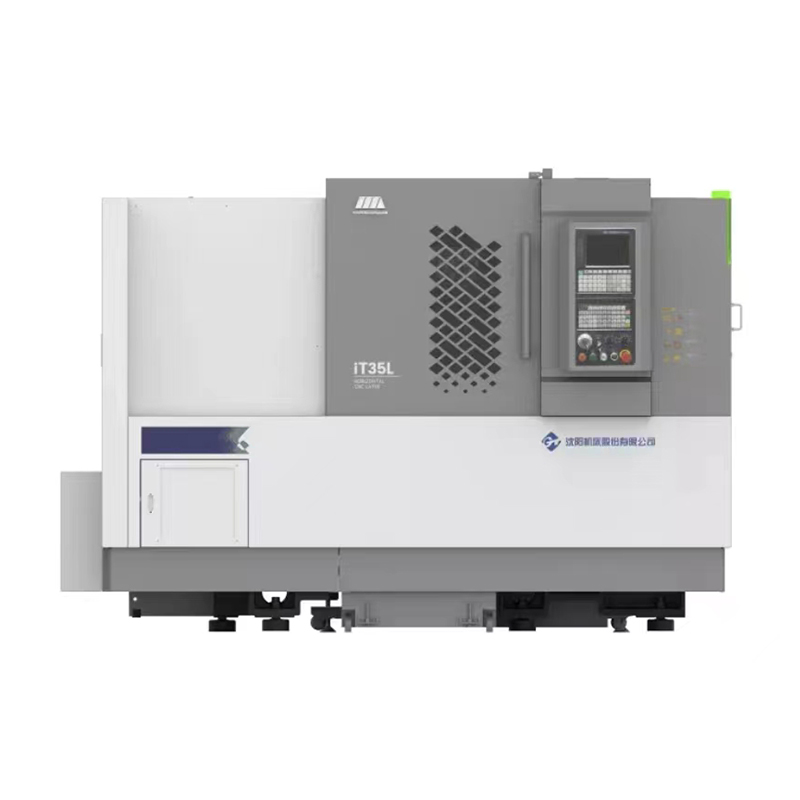

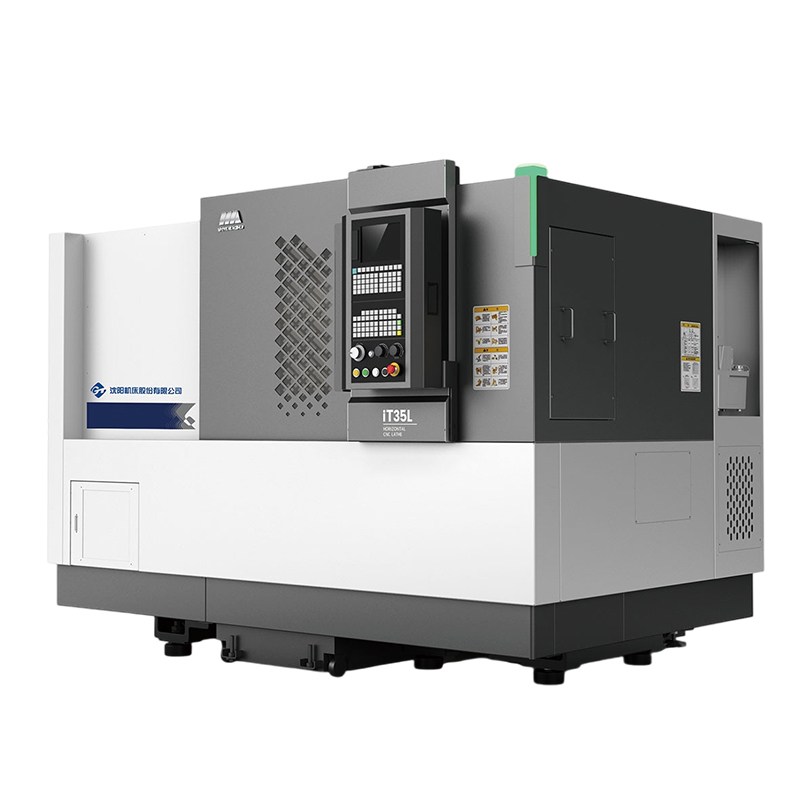

Main technical parameters:
Item | Unit | IT35 | IT35L | IT50 |
Max. cutting dia. | mm | Φ360 | Φ360 | Φ500 |
Max. cutting length | mm | 350 | 500 | 500 |
Max. swing over bed | mm | Φ580 | Φ580 | Φ580 |
Max. swing over slide | mm | Φ360 | Φ330 | Φ320 |
Spindle nose | A2-6 | A2-6 | A2-8 | |
Front bearing dia. | mm | 100 | 100 | 120 |
Spindle taper and hole size | 1:20；Φ70 | 1:20；Φ70 | 1:20；Φ90 | |
Dia.of spindle hole | mm | Φ65 | Φ65 | Φ80 |
Max.dia.of bar | mm | Φ50 | Φ50 | Φ65 |
Chuck size | inch | 8 | 8 | 10 |
Spindle speed | r/min | 4000 | 4000 | 3500 |
Spindle rated torque | N·m | 158（666r/min） | 158（666r/min） | 243（588r/min） |
Max.spindle torque | N·m | 215（666r/min） | 215（666r/min） | 300（588r/min） |
Main motor output power continuous/30min | kW | 11/15 | 11/15 | 15/18.5 |
X/Z rapid traverse | m/min | 30 | 30 | 24 |
X axis travel | mm | 200 | 200 | 260 |
Z axis travel | mm | 350 | 510 | 505 |
Tailstock travel | mm | - | 400 | 400 |
Tailstock taper | Morse | - | MT-5 | MT-5 |
Turret type | Horizontal 8 positions servo turret | Horizontal 8 positions servo turret | Horizontal 8 positions servo turret | |
Center height | mm | 80 | 80 | 100 |
Rotary positioning | Sec. | ±1.6 | ±1.6 | ±1.6 |
Weight | kg | 3300 | 3600 | 3700 |
Overall dimensions(LxWxH) | mm | 2330×1675×1760 | 2550×1675×1760 | 2550×1675×1820 |
