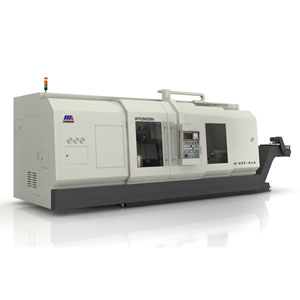

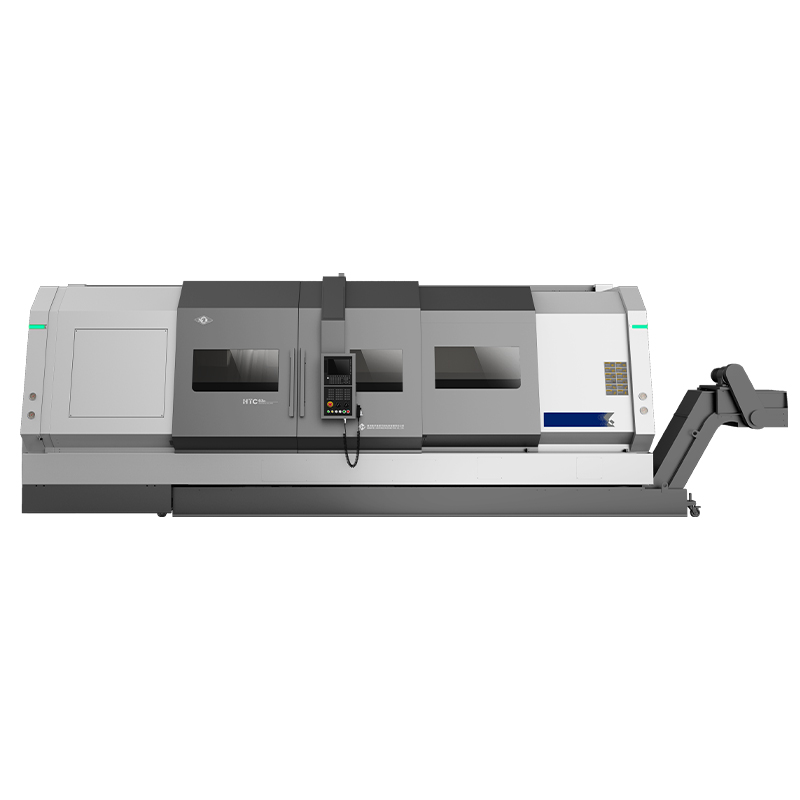

The HTC40ny/HTC50n/HTC63ny/HTC80n/nm/ny/t series horizontal CNC lathes and turning centers adopt a 45° integral slant bed,75° is optional for partial models. The bed is cast by resin‑sand process with reasonably arranged internal rib structures, wide guideway surfaces and high overall rigidity, featuring good torsional resistance and smooth chip removal. Especially suitable for high‑efficiency, high‑volume and high‑precision machining of rotary parts in aerospace, electronics and other industries, it possesses the advantages of world‑class similar products.

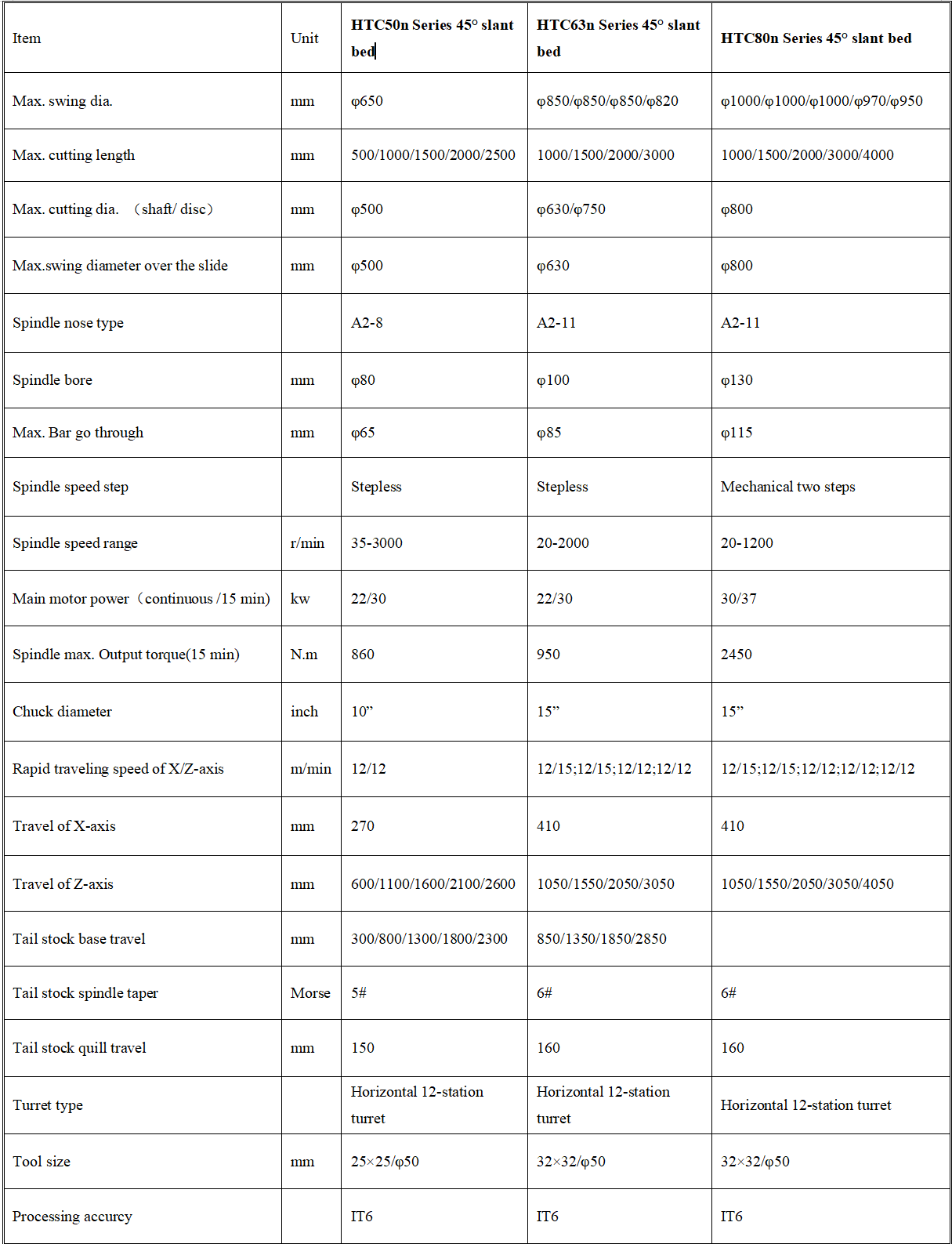

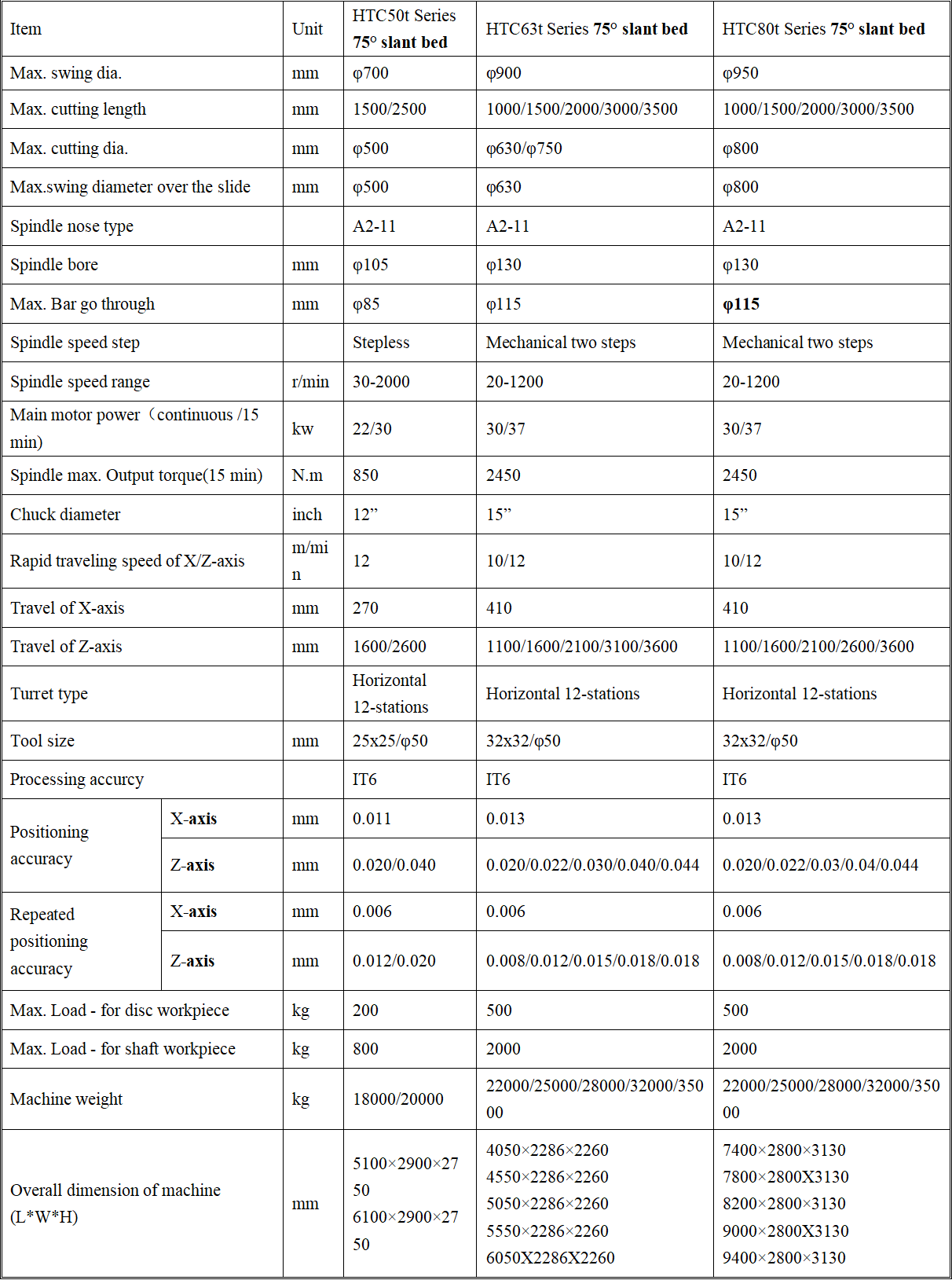

Item | Unit | HTC40ny series 45° slant bed | |
Max. swing dia. | mm | φ660 | |
Max. cutting length | mm | 900/1400/1900/2400 | |
Max. cutting dia. | mm | φ400 | |
Max.swing diameter over the slide | mm | φ400 | |
Spindle nose type | A2-8 | ||
Spindle bore | mm | φ70 | |
Max. Bar go through | mm | φ60 | |
Spindle speed step | Stepless | ||
Spindle speed range | r/min | 35-3000 | |
Main motor power（continuous /15 min) | kw | 22/30 | |
Spindle max. Output torque(15 min) | N.m | 860 | |
Chuck diameter | inch | 10” | |
Rapid traveling speed of X/Z-axis | m/min | 12/12 | |
Rapid traveling speed of Y-axis | m/min | 8 | |
Travel of X-axis | mm | 270 | |
Travel of Y-axis | mm | ±70 | |
Travel of Z-axis | mm | 1050/1550/2050/2550 | |
Tail stock base travel | mm | 750/1250/1750/2250 | |
Tail stock spindle taper | Morse | 5# | |
Tail stock quill travel | mm | 150 | |
Turret type | Horizontal 12-stations power turret | ||
Tool size | mm | 25×20/φ40 | |
Processing accuracy | IT6 | ||

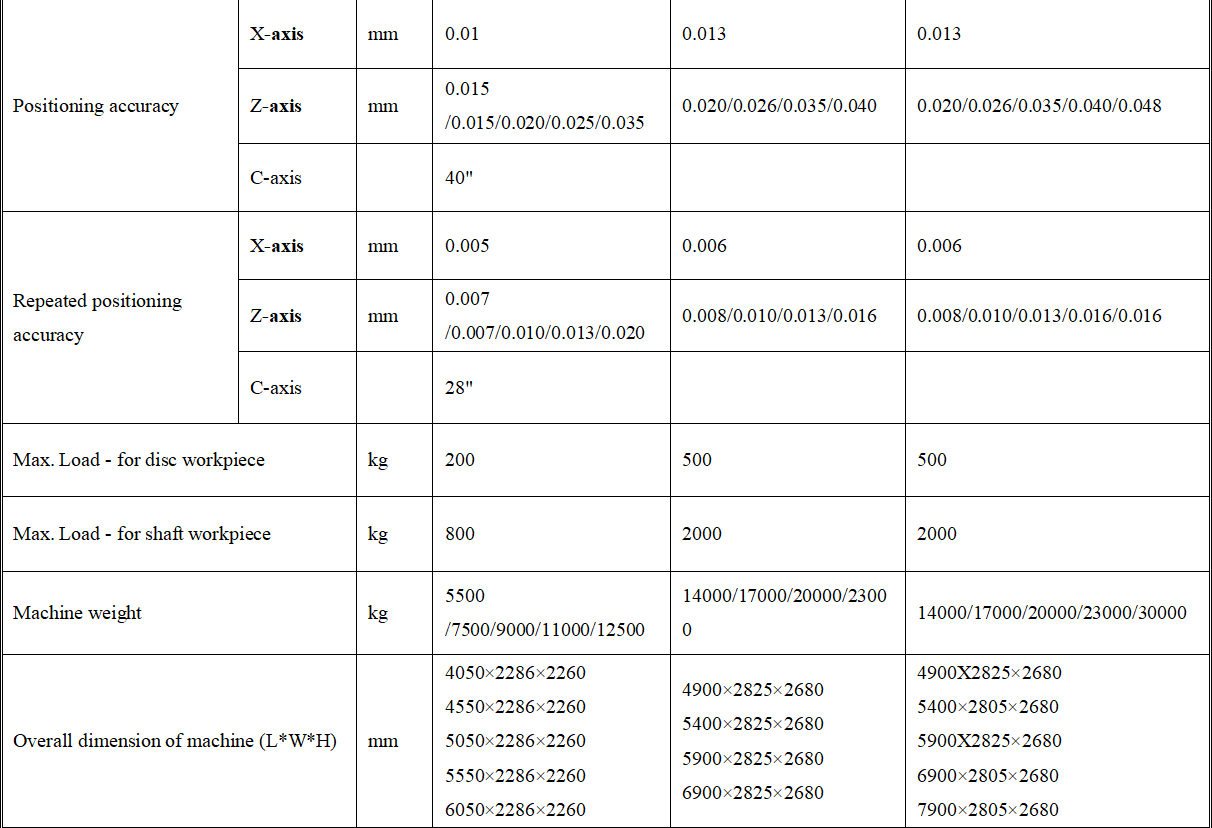

Positioning accuracy | X-axis | mm | 0.01 |
Z-axis | mm | 0.015/0.020/0.025/0.035 | |
Y-axis | mm | 0.015 | |
C-axis | 40” | ||
Repeated positioning accuracy | X-axis | mm | 0.005 |
Z-axis | mm | 0.007/0.010/0.013/0.020 | |
Y-axis | mm | 0.006 | |
C-axis | 28" | ||
Max. Load - for disc workpiece | kg | 200 | |
Max. Load - for shaft workpiece | kg | 800 | |
Machine weight | kg | 7500/9000/11000/12500 | |
Overall dimension of machine (L*W*H) | mm | 4550×2286×2260 5050×2286×2260 | |
