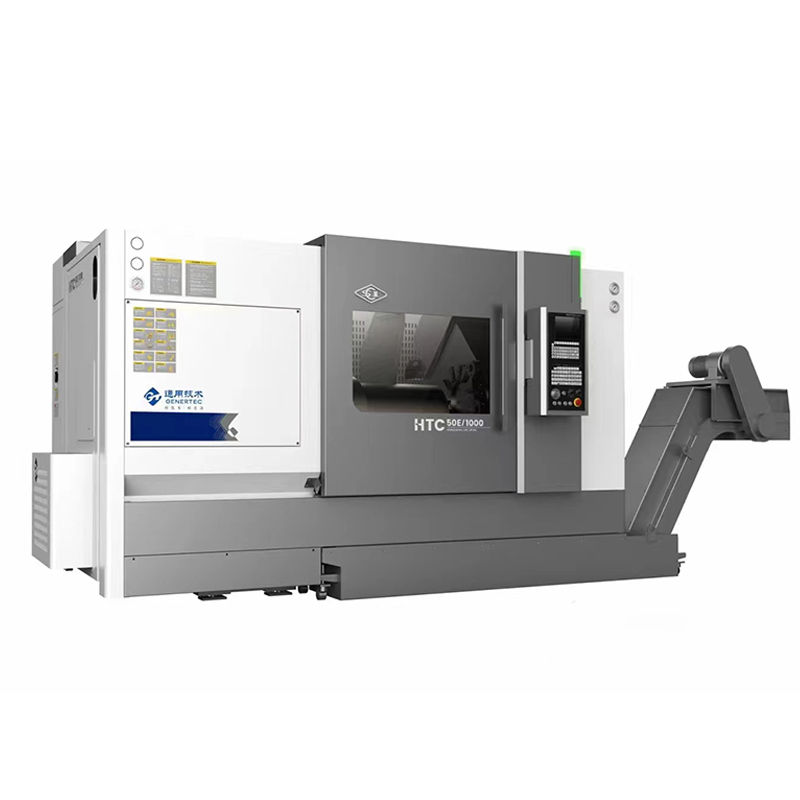

The HTC50E/B/P Series CNC Horizontal Lathes are capable of machining shaft and disc workpieces, turning threads, circular arcs, cones as well as internal and external curved surfaces of rotary bodies, realizing high-efficiency, mass and high-precision machining of rotary parts. The design adopts reasonable stiffness matching of key components including the spindle, bed and tailstock, which greatly improves the rigidity of the whole machine and ensures stability during heavy cutting. Therefore, the machining accuracy of external cylindrical surfaces can reach IT6～IT7 grade. As general-purpose machine tools, they are especially suitable for high-efficiency, mass and high-precision machining of rotary parts in automotive, electric motor, bearing, hydraulic and other industries.
Main technical parameters:
Item | Unit | HTC50E-1000 | HTC50E-1500 | HTC50E-2000 | |
Max. swing diameter over bed | mm | 700 | 670 | 670 | |
Max. cutting length | H | 1000 | 1500 | 2000 | |
Max. cutting diameter | mm | shaft φ500/discφ550 | shaft φ500/discφ550 | shaft φ500/discφ550 | |
Max. swing dia. over carriage | m | φ500 | φ500 | φ500 | |
Spindle nose type and code | A2-8 | A2-8 | A2-8 | ||
Diameter of spindle bore | mm | φ80 | φ80 | φ80 | |
Spindle speed range | r/min/Nm | 50-3500/344 GSK | 50-3500/344 GSK | 50-3500/344 GSK | |
Output power of main motor 30min/ continuous | kW | 30/22 | 30/22 | 30/22 | |
Chuck dia. and type | inch | 10" | 10" | 10" | |
Rapid speed of X-axis | m/min | 24 | 24 | 24 | |
Rapid speed of Z-axis | m/min | 24 | 24 | 24 | |
Travel of X-axis | mm | 320 | 320 | 320 | |
Travel of Z-axis | mm | 1050 | 1550 | 2050 | |
Tailstock quill diameter | φ120 | φ120 | φ120 | ||
Tailstock quill travel | mm | 150 | 150 | 150 | |
Tailstock travel | mm | 800 | 1300 | 1800 | |
Tailstock quill taper | Morse | 5# | 5# | 5# | |
Tailstock sleeve and tailstcok lock type | Hydraulic sleeve of tailstock | Hydraulic sleeve of tailstock | Hydraulic sleeve of tailstock | ||
Turret type | Horizontal 12 -station Power turret | Horizontal 12 -station Power turret | Horizontal 12 -station Power turret | ||
Tool for turning outer diameter | mm | 25×25 | 25×25 | 25×25 | |
Dia. of boring tool rod | mm | φ40/φ32/φ25/φ16 | φ40/φ32/φ25/φ16 | φ40/φ32/φ25/φ16 | |
Nearest tool selection available to the tool or not | yes | yes | yes | ||
Max. loading capacity(including the chuck and other accessories of the machine) | Disc type parts | kg | 300 | 300 | 300 |
Shaft type parts | kg | 800 | 800 | 800 | |
Weight of machine | kg | 7000 | 8500 | 10000 | |
Overall dimensions of machine(L×W×H) | mm | 3700×2210×2200 | 4300×2210×2300 | 4900×2210×2200 | |
