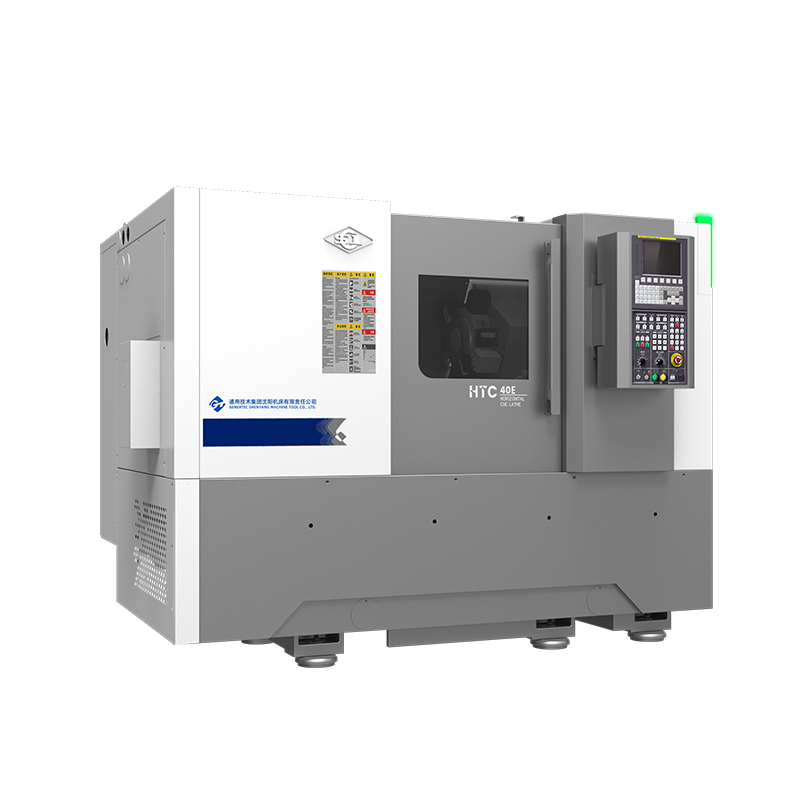

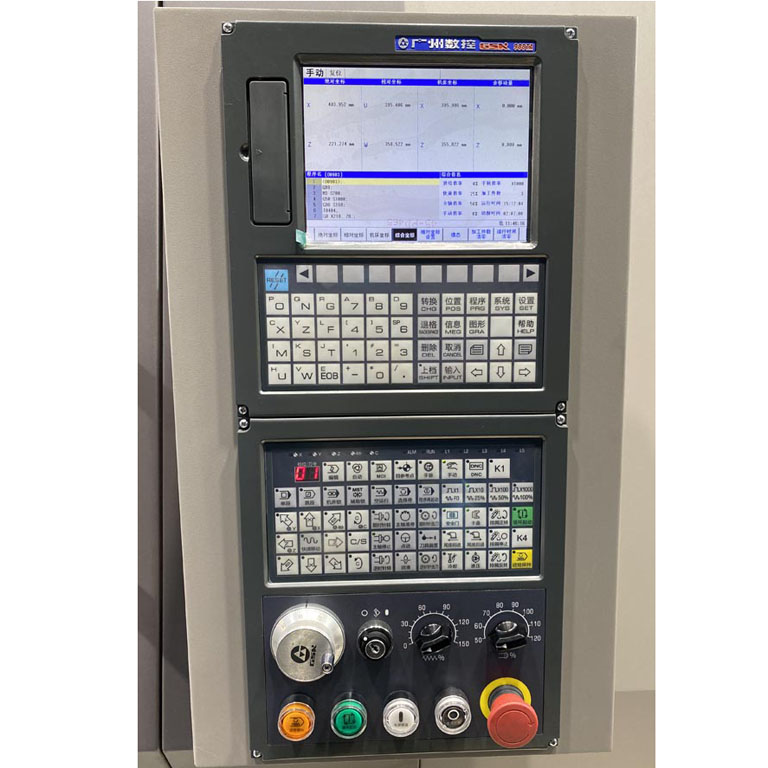

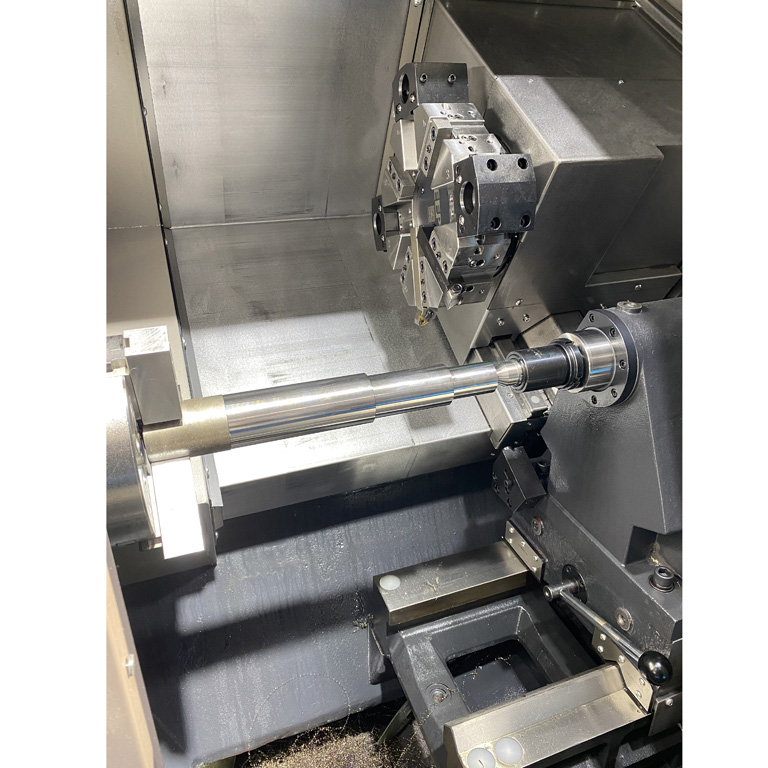

HTC40E Series CNC Horizontal Lathes offer a maximum machining diameter of φ360 mm and maximum machining length of 300/500 mm. Adopting newly designed main structure and proven assembly technology, the series is fully upgraded. Boasting consistent reliable performance and innovative ergonomic layout, HTC40E Series is a top-tier choice in the sector.
Main technical parameters:
Item | Unit | HTC40E/300 | HTC40E/500 | |
Max. swing diameter over bed | mm | Ø500 | Ø500 | |
Max. cutting length | mm | 300 | 500 | |
Max. cutting diameter | mm | Ø360 | Ø360 | |
Max. swing dia. over carriage | mm | Ø320 | Ø320 | |
Standard cutting diameter | mm | 240 | 240 | |
Spindle nose type and code | A2-6 | A2-6 | ||
Diameter of spindle bore | mm | Ø65 | Ø65 | |
Max. allowed dia. of bar | mm | Ø50 | Ø50 | |
Single spindle headstock | Spindle speed range/Max. output torque of spindle | r/min/Nm | 50～4500/177 | 50～4500/177 |
Output power of main motor | 30 minutes /continuous | kW | 11/15 | 11/15 |
Standard chuck | Chuck dia. | inch | 8 " | 8 " |
Rapid speed of X-axis | m/min | 30 | 30 | |
Rapid speed of Z-axis | m/min | 30 | 30 | |
Travel of X-axis | mm | 200 | 200 | |
Travel of Z-axis | mm | 320 | 550 | |
Standard turret type | Horizontal 8-station | Horizontal 8-station | ||
Tailstock travel | mm | 350 | ||
Top sleeve travel | mm | 100 | ||
Taper of tailstock / taper hole | Morse | 5# | ||
Tool size | Tool for turning outer diameter | mm | 25×25 | 25×25 |
Dia. of boring tool rod | mm | Ф40/Ф32/Ф25/Ф20 | Ф40/Ф32/Ф25/Ф20 | |
Nearest tool selection available to the tool disc or not | Yes | Yes | ||
Weight of machine | Total weight | kg | 3650 | 3650 |
Max. load capacity(including the chuck and other accessories of the machine) | Disc type parts | kg | 200 | 200 |
Shaft type parts | kg | 500 | ||
Overall dimensions of machine(Excluding chip conveyor) | L×W×H | mm | 2400×1800×1800 | 2400×1800×1800 |
