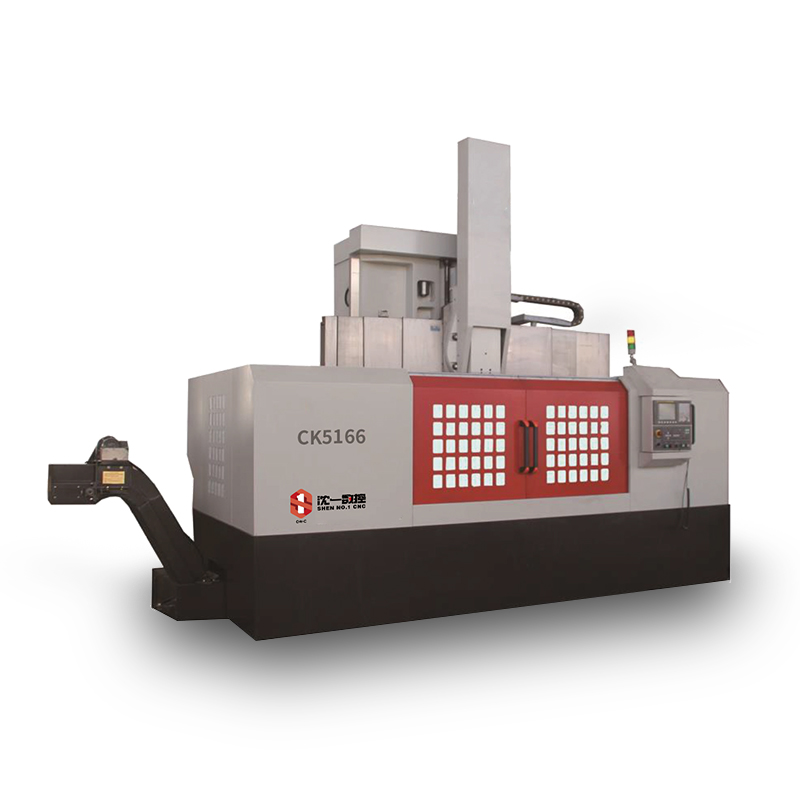

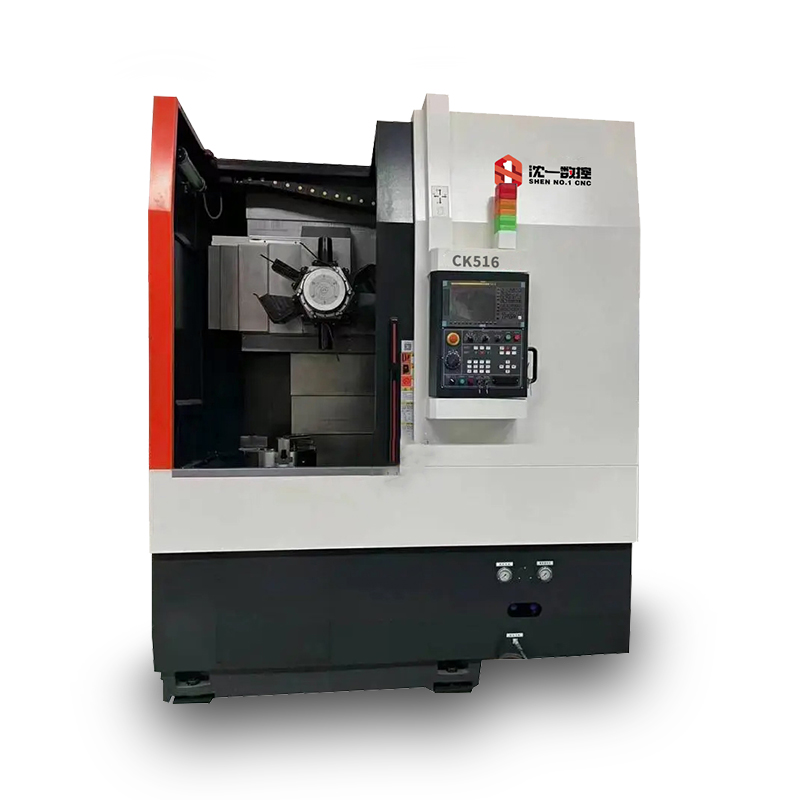

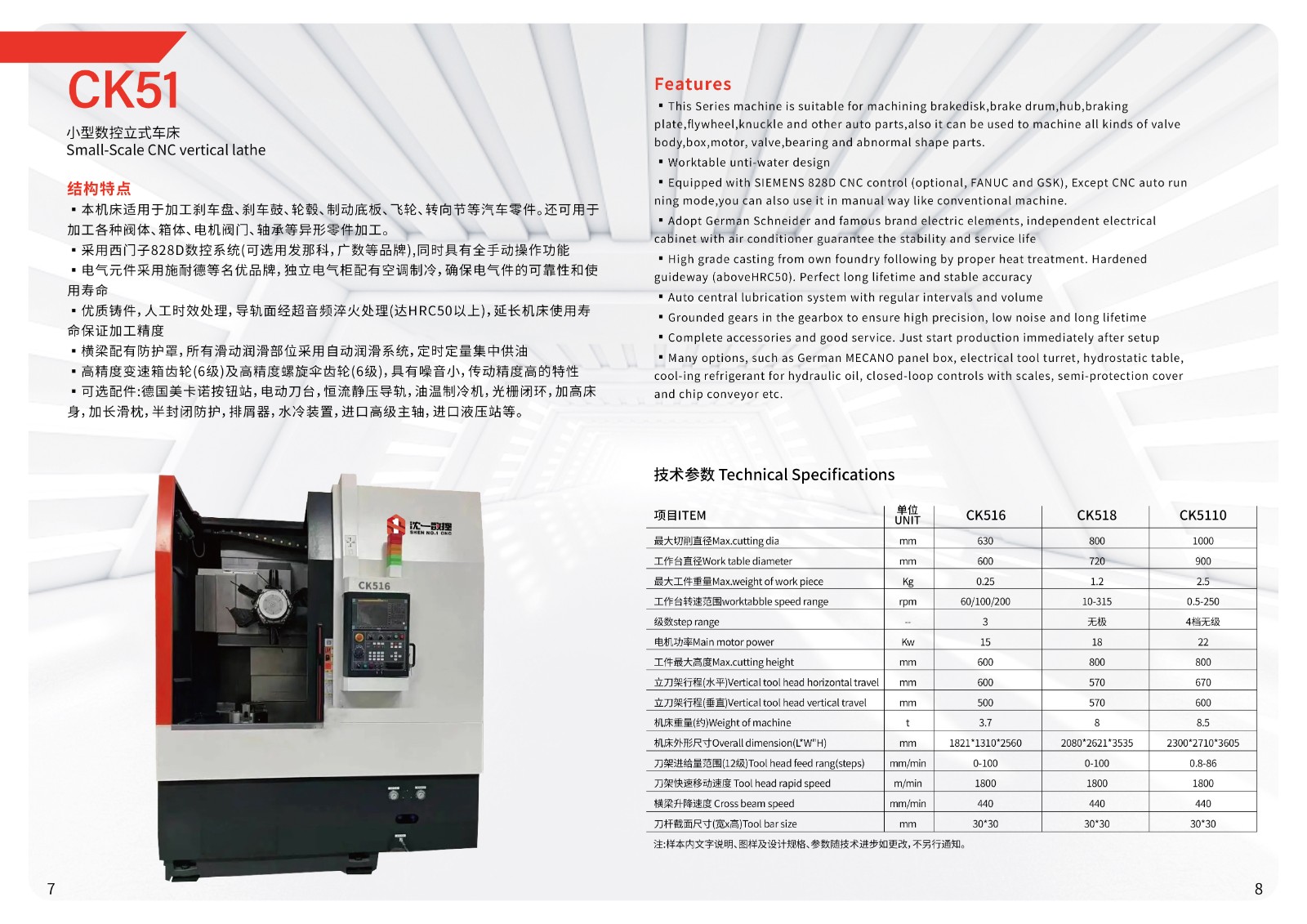

CK51 CNC Small‑Sized Vertical Lathe Series

Equipped with SIEMENS 828D CNC system,FANUC,GSK and other brands are optional,the machine also supports full‑manual operation.

Electrical components are sourced from well‑known brands such as Schneider. The independent electrical cabinet is fitted with air‑conditioning cooling to guarantee reliability and service life of electrical parts.

Constructed with high‑quality castings subjected to artificial aging treatment. Guideway surfaces are treated by super‑audio quenching,reaching HRC50 or above,which extends machine service life and secures machining accuracy.

High‑precision gearbox gears and high‑precision spiral bevel gears deliver low noise and high transmission accuracy.

Optional accessories: German Mecano control button station, electric turret, constant‑current hydrostatic guideway, oil temperature chiller, grating closed‑loop system, heightened machine base, extended ram, semi‑enclosed guarding, chip conveyor, water‑cooling unit, imported premium spindle, imported hydraulic power unit, etc.
